Nutrient Film Technique (NFT) - An Advanced Hydroponic Production System

  • Specifications:



  • Modular: Yes
  • Closed System: Yes
  • Automated: Yes
  • Food Safe: Yes

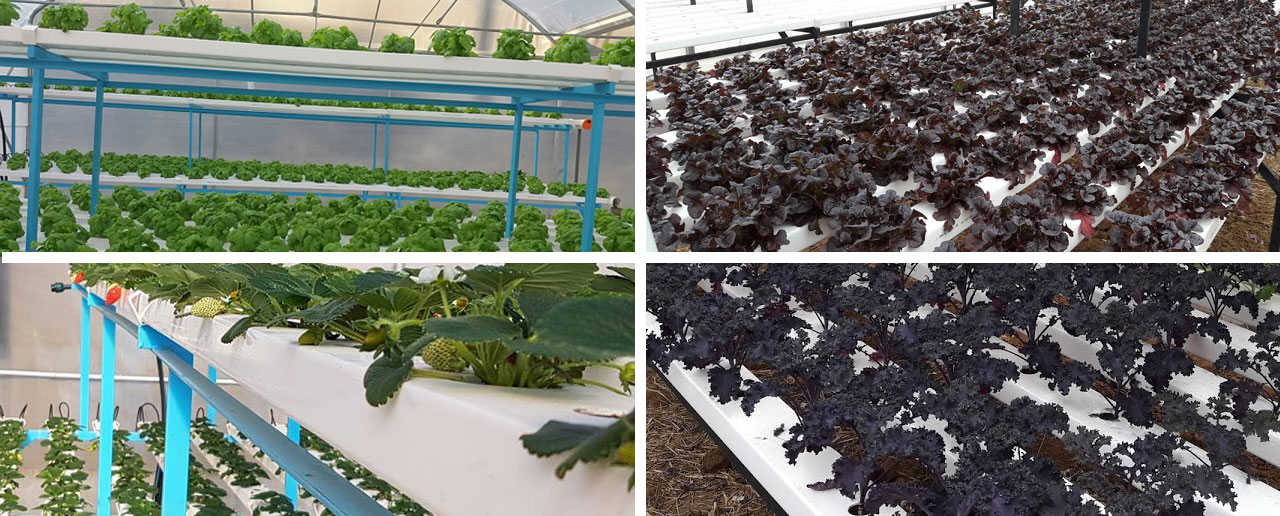

Nutrient Film Technique (NFT) is a growing system used for production of different crops, especially leafy crops and strawberries.The system is based on the recirculation of the nutrient solution and the absence of substrates.

NFT significantly decreases the use of water, fertilizers and pesticides while it increases the production per unit area and enhances in product quality and uniformity.

The outcomes of the NFT moves farming to the highest standards of efficiency, yielding and sustainability.

Our system is modular and scalable, depending on the investor's needs and land restrictions.

Product Details

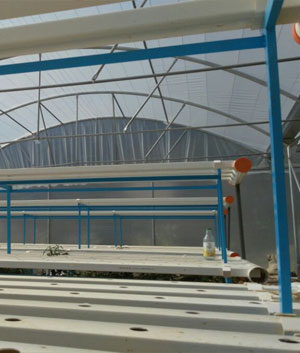

The Stand

Customizable and Modular

Our NFT stands are customizable to maximize the production per unit area while keeping daily work and agricultural practices easy to handle.

The metallic stands are:

  • Rectangular steel tubes with a 2.5mm thickness
  • Coated with water and chemical proof layer
  • Easy to install and weld
  • Easily uninstalled
  • Strong structure

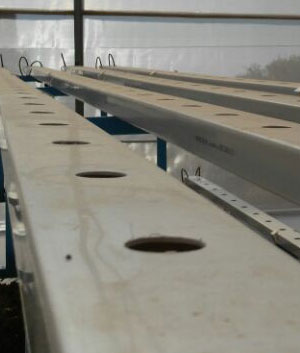

The Gullies (Channels)

Durable, Milky White UPVC Channels

Our NFT Channels (gullies) are chemical resistant, food and environmentally safe, durable and can withstand extreme temperatures and mechanical weathering.

The gullies are:

  • UPVC pipes PN16
  • Suitable for potable water manufactured in compliance with requirements of standards: NL-EN-ISO 1452.
  • Environment-friendly as they are Lead-free
  • Excellent fluid flow characteristic
  • Resistance to all types of corrosion
  • Good mechanical strength
  • Light weight
  • Easy to install
  • Easy to maintain
  • Non-flammable (self-extinguishing- Class M1)
  • Good electrical insulation (surface resistance 1000Volts)

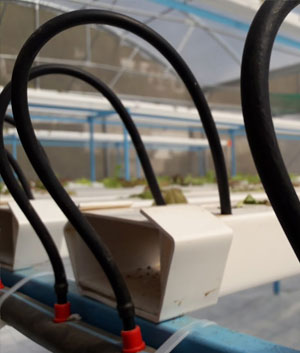

The Nutrient Solution Network

EU products, long lasting and Automated

The watering network of the NFT system can be manual or automatic, either ways, it is easy to control, program and maintain.

The watering network is:

  • All hydraulic and compression fittings and PE pipes are made in Greece, EU
  • Customized to separate each production unit from the rest
  • Pipes are temperature and chemical resistant
  • All hydraulic and compression fittings are sealed for zero leakage
  • Pumps are made in Italy or USA (depending on the system specifications)
  • Electrical and electronic control panel for manual and automatic control
  • Hydro-cyclonic, self-cleaning filtering system
  • Can withstand 10 Bars of pressure
  • Safety electrical breakers

Add-ons

For a more sophisticated system

Many add-ons can be integrated to the NFT system, including Ozonators, Reverse Osmosis (RO), LED lights and many other options.
